Elevator Frequency Inverter, AC Drives, VFD with EMC Built in Profinbus Modbus

Main pull, take-up line adopts full vector control inverter, super low frequency torque, excellent dynamic characteristics, reliable stability accuracy, accurate PID algorithm, to meet the requirements of stable operation of the system full speed range.
A. Linear wire drawing machine control solution: Feed-forward PID control mode is adopted between each pass. The main speed is calculated from the metal flow rate of the front and rear stages. The PID is used as the system speed bottom fine-tuning cool, and the speed is calculated inside the inverter. Realization, fast response, low cost, simple debugging;
B. It can control the torque between each inverter by means of controlling the torque between each pass to realize the control system of the tensionless arm, simplify the mechanical design and reduce the cost of the system;
C. The take-up part adopts the PID feedback method to adjust the actual tension by adjusting the air pressure of the swing arm;
D. The various linkage logic controls of the system are implemented by the PLD.

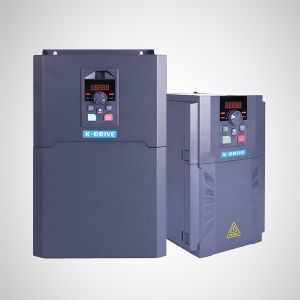

Products Picture (7.5KW)

Single multi-speed terminal elevator controller

For the elevator controller with only one multi-segment speed changing terminal, the high-speed segment and the layer speed segment are controlled by the on-off of the high-speed terminal. The wiring diagram of such elevator controller and frequency converter is as follows:

Single multi-speed terminal elevator controller

For the elevator controller with only one multi-segment speed changing terminal, the high-speed segment and the layer speed segment are controlled by the on-off of the high-speed terminal. The wiring diagram of such elevator controller and frequency converter is as follows:

Double multi-speed terminal elevator controller

When the elevator is in use, if the system's power supply suddenly fails, it may result in passengers being locked in the car.

KD600E series elevator inverter can support the emergency UPS power supply operation for emergency power outage operati-on, and the emergency signal can be received by the inverter terminal DI6. The wiring diagram is as follows:

Closed loop elevator control

KD600E series elevator inverter can support closed-loop control, and provides a variety of PG cards for use with different encoders. Please refer to Chapter 5 of KD600 series User manual for PG card information. The wiring diagram of elevat-or controller and frequency converter for closed-loop elevator control is shown in the following figure:

Applications

The KD600E driver is a special frequency converter for K-Drive elevators. They provide V/f control, including voltage and frequency separation control.

Why choose K-Drive variable frequency drive?

In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, K-Drive, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.

Production

In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.

K-Drive VS Other brands

Packaging and logistics

All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult K-Drive logistics department for worldwide shipment services.

* Low-power inverters are packed in cardboard box, and others are in plywood cases.

* Plenty of transportation procurable globally in accordance with customer demand or K-Drive expertise.

Please leave us an inquiry for more details of our frequency inverters, like information of the model numbers, technical data, applicable application, pricing, distributor policy, lead time and/or customized functionality.

Who We Are

Shenzhen K-Easy Automation Co.,Limited. a Professional AC drive, Frequency Inverter, VFD, enterprise which has been specializing in Researching, Manufacturing and Trading high, medium and low voltage frequency inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years’ experience of theoretical research, product development and quality management. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace or to be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support.

We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.

We have built up a comprehensive product family. Frequency inverters' power covers the range from 0.4 to 630kW, and voltage range is between 220V and 480V. More than inverters are running smoothly 300, 000 units at different industrial sites.

We believe “quality is life ”,so we will test all products before shipment,All Module of our VFD will be used quality is life with Infenion only, With years of persistence, the total failure ratio of Our frequency inverters has been controlled below 1%. We never lose a customer because of the quality problem;

With Strong R&D and Engineer Team, makes our after-service very easy, For all doubts and requesting for technologies supporting, We can offer detailed Solution without delay, so for us,“Not Only Products, But also solutions”;

Join us, enjoy the business.
